KJ250 Flatbed Mounted Crane (2M Boom, Gate Hinge Type)
SKU: KJ250/2GHT
| Max Working Load (MWL) | 250 kg |
|---|---|
| Boom Reach | 2020 mm |
| Weight | 45 kg |
Key Features
- Built in overload protection
- Compact design
- Low crane weight of approximately 45kg maximises payload
- Supplied with Corner Bracket (9kg)
- Supplied with Combi Pillar (29kg)
- Can be re-fitted to new replacement vehicles
- Easy to operate wander lead remote control
- Versatile – can be used to lay kerbstones as well as lift general plant such as whacker plates and compressors

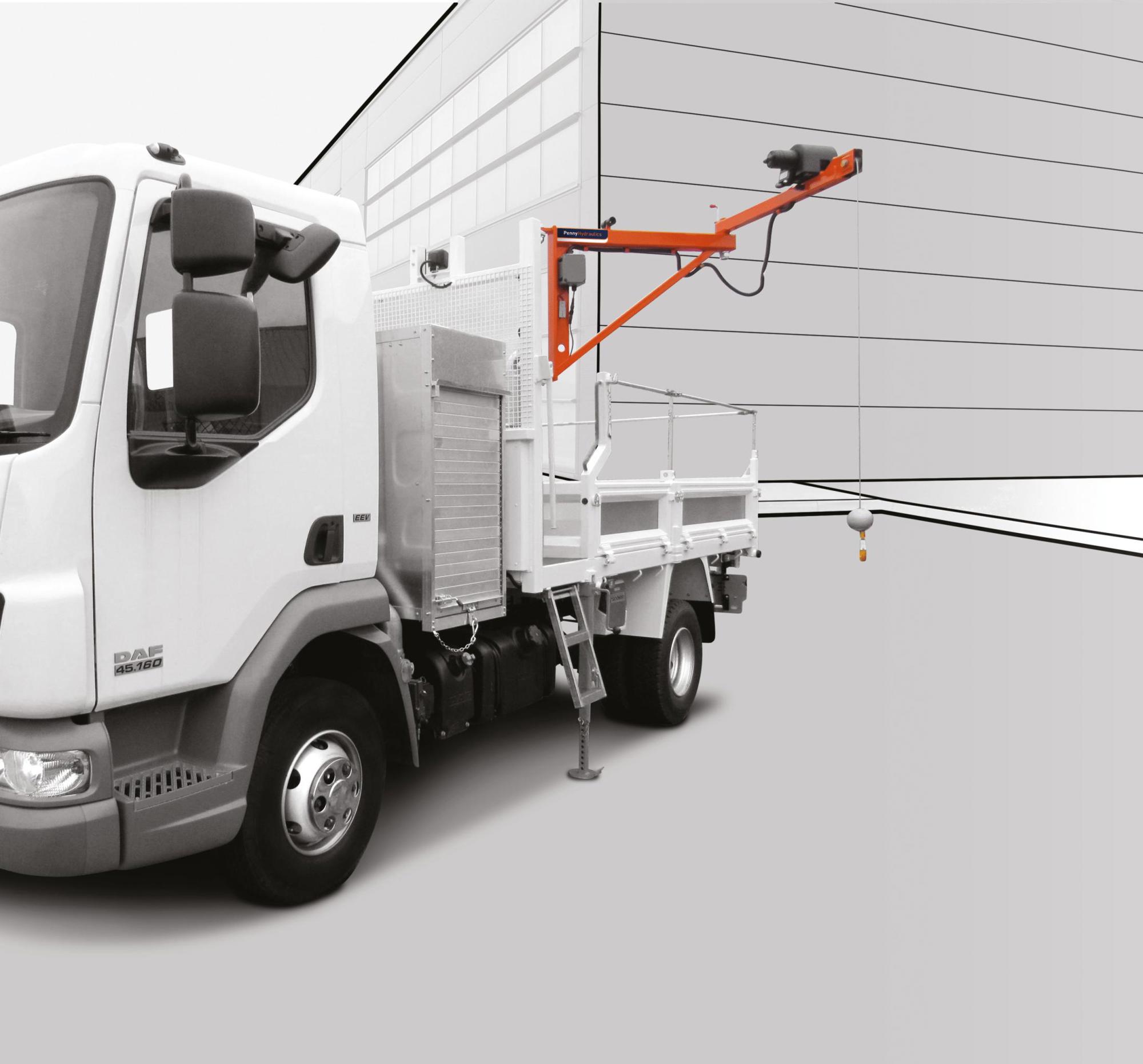

The KJ250/2GHT can be fitted directly to the vehicle headboard to save floor space and is ideal for tipper vehicles.
Its two-metre boom and two pivot points mean the operator can carry out lifts within a four-metre diameter.
Need pricing or advice?
Useful Information
Product Specific

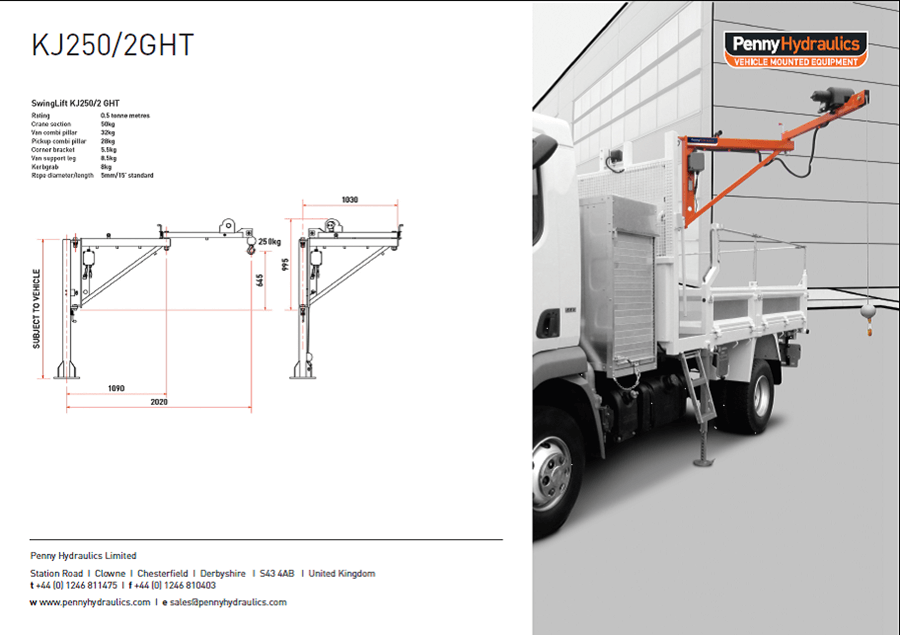

KJ250/2 GHT Specification
KJ250/2 GHT Operating & Maintenance Manual
KJ Range Operating & Maintenance Manual
Penny Engineering Lorry Loader Safety Guide
Electric SwingLift Cranes
- A range of kerb and bollard handlers available
- 150kg MWL version also available
- 12v or 24v operation from vehicle battery
- Radio remote control
- Corner bracket for mounting direct to headboard
- Pillar mounting
- Additional pillar height
- Extra rope length – 9m/30′
- Manual stabiliser leg
- Battery protection
- Lifting accessory kit
- Easily installed at our own premises, on site or by a vehicle body builder
- Stabiliser/outrigger pads
- Powder coated paint finish
