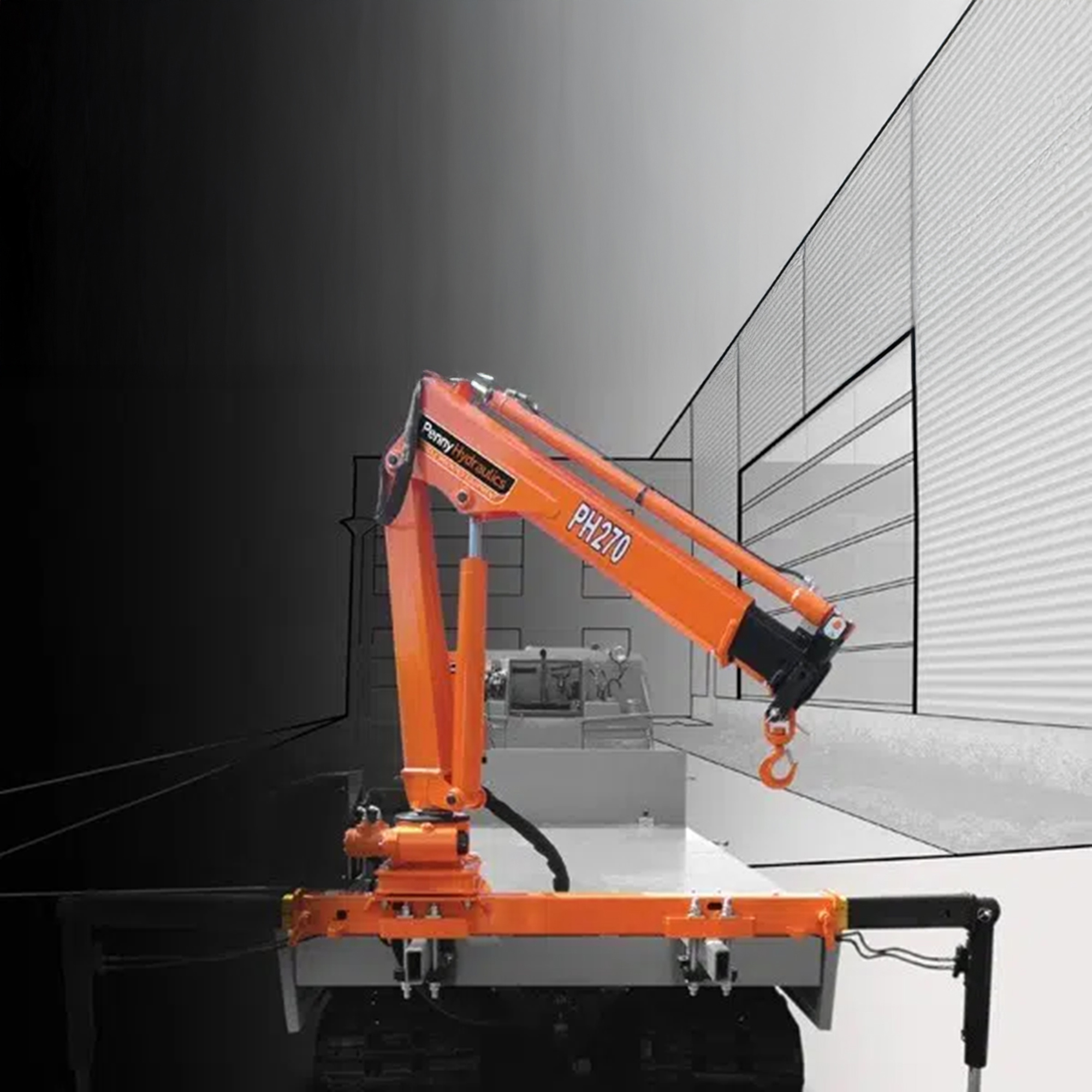

PH270 2.5tm Flatbed Mounted Crane
SKU: PH270
| Max Working Load (MWL) | 2150 kg |
|---|---|
| D Rated Load | 990 kg |
| Boom Reach | 6000 mm |
| Weight | 380 kg |
Key Features
- Crane Weight 235 kg - 290 kg
- 2.5tm / 25kNm rated crane
- Standard outreach from 3.20 to 5.0m
- ECI – Electronic Capacity Indicator
- 360° slewing rotation with worm screw
- 4 functions valve bank
- 15 lt. oil tank for H (P.T.O. – Power Take Off) version
- Motor pump kit with 11 lt. oil tank for electro-hydraulic versions E12/24V (along with battery connection cables)
- Fitting kit inc. Tie bolts set, nuts and lock nuts, spare grease cartridge for slewing worm gear
PH270 has a remarkably low self-weight from only 235kg and fully rated can lift in excess of 2000kg. The 270L.3 has an amazing boom outreach of 6.0m making this a top choice for 3.5t> vehicles.
Need pricing or advice?
Useful Information
Product Specific
PH270.2 Specification
PH270.3 Specification
PH270L.2 Specification
PH270L.3 Specification
PH270 Technical Data
PH Installation Manual
ECI – Rated Capicity Indicator: Instructions
LLC – Load Limiting Cell: Instructions
LME04 – Rated Capacity Device: Instructions
SCU – Stability Control Unit Instructions
PH270 Operating & Maintenance Manual
- Crane base with 2 hydraulic stabilisers (fixed or tilting)
- Additional beam with hydraulic or mechanical stabilisers
- LLC, LME04 or LME04 + SCU monitoring devices
- Slew limit kit
- Boom in transit warning kit
- Micro-switch kit to confirm leg stowage
- 3 – 4 functions proportional remote control (by cable or radio)
- 700 kg hydraulic winch (for H versions only)- New system with less cumbersome snatch block and quick disconnecting stop end system
| Model | Description |
|---|---|
| PH 270.2 | 2 hydraulic extensions |
| PH 270.3 | 3 hydraulic extensions |
| PH 270L.2 | 2 hydraulic extensions |
| PH 270L.3 | 3 hydraulic extensions |
